Dimensions
258 x 155 x 30 mm
Nominal voltage
12 V/24V
Operating temperature
-40°C to +85°C
Protection class
IP40
Input digital 8 mA (parametric)
20
Input analog (parametric)
12

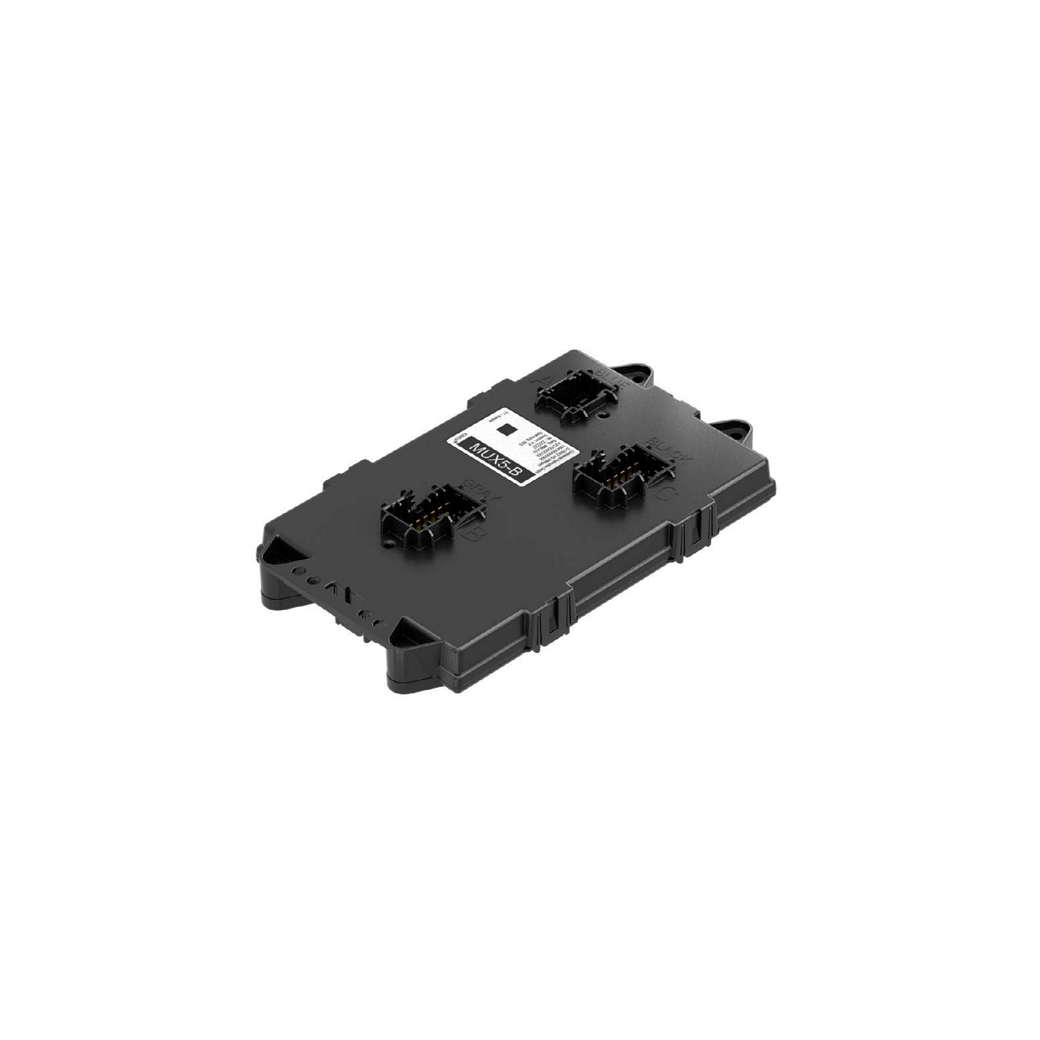

The benefits of the generic multiplex node MUX5-B at a glance
- Generic multiplex node for a wide range of applications
- Built-in diagnostics and protection functions
- Multiple input and output options
- Supports ISO 26262 up to ASIL B
?qlt=95)
Technical Specification for our generic multiplex node MUX5-B
Input frequency
4
Output high side
12 x 8.8A, 4 x 5.0A, 6 x 3.0A, 8 x 1.0A, 4 x 0.3A
Output low side 1.0A
8 (4PWM)
Output half-bridge 3.0A
4
Sensor supply 20 mA
2
