Discover our ZR5-A controller

The central, intelligent and powerful controller with gateway functionality for on-board electronics

As a body controller, the ZR5-A can be expanded with the MUX5-B multiplex nodes and communicate with them via CANs. It also offers an efficient and powerful CAN structure for connecting various instrument clusters and driver's workplaces.

To achieve maximum flexibility, all CAN communication is based on generic objects and interfaces with a flexible data rate. The ZR5-A also offers a central gateway for EOL programming and diagnostics. The application is created by our customers using the model-based programming tool KIBES® LC3. The device is designed in accordance with ISO 26262 and supports application levels up to ASIL B.

The benefits of the ZR5-A controller at a glance

Generic central computer for general purpose
Complex gateway functionality
Central gateway for EOL programming & diagnosis
Up to 18 nodes
Application programming via KIBES® LC3 Tool logi.CAD 3 (IEC 61131-3)
Supports ISO 26262 up to ASIL B

Technical Information for ZR5-A controller

Multiplex nodes
max. 18

Dimensions
162 x 165 x 30mm

Nominal voltage
12 V/24 V

Operating temperature
-40°C to +85°C

Protection class
IP40

CAN interfaces
8

Generic CAN objects (protokol J 1939)
4

Multiplex CAN to MUX5-B
3

Diagnostics CAN
1

Digital inputs (level programmable, 4 wake-up capable)
8

Outputs low side, 0.1A
9

2 LIN
12 V

Inputs
Digital, CAN, LIN

Prepared
Ethernet (BroadR-Reach)

Diagnostics protocol
UDS to D CAN

Frequency inputs
Speed, RPM

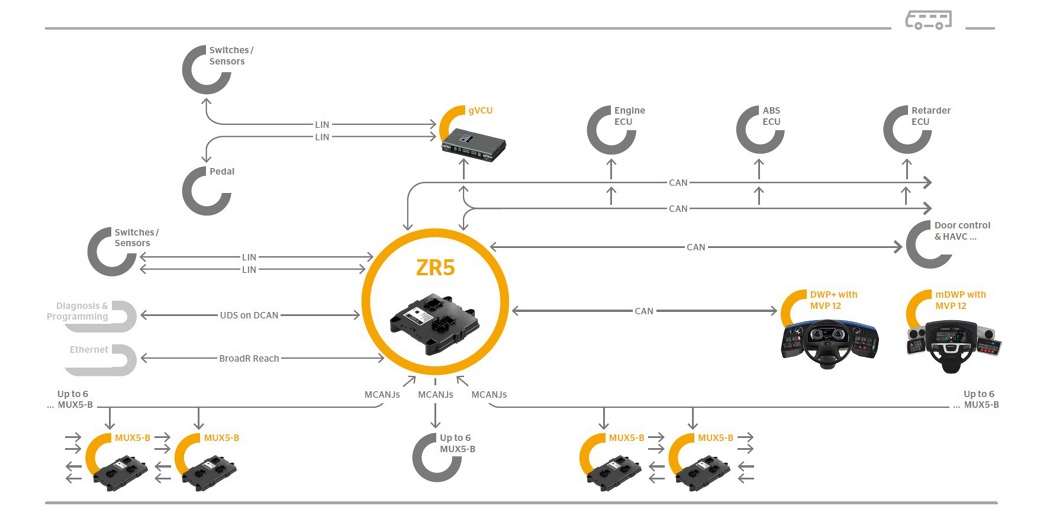

Typical control architecture for commercial vehicles

The system can cover almost any solution with the ZR5-A central computer. A huge number of functions can be realized with up to 18 MUX5-B nodes. It is also possible to combine various driver's workplaces and instrument clusters with the body controller. The ZR5-A has complex network connectivity with several generic CANs, which can be programmed to customer specifications.
